Optimal Projector Adjustment

Optimal Projector Adjustment

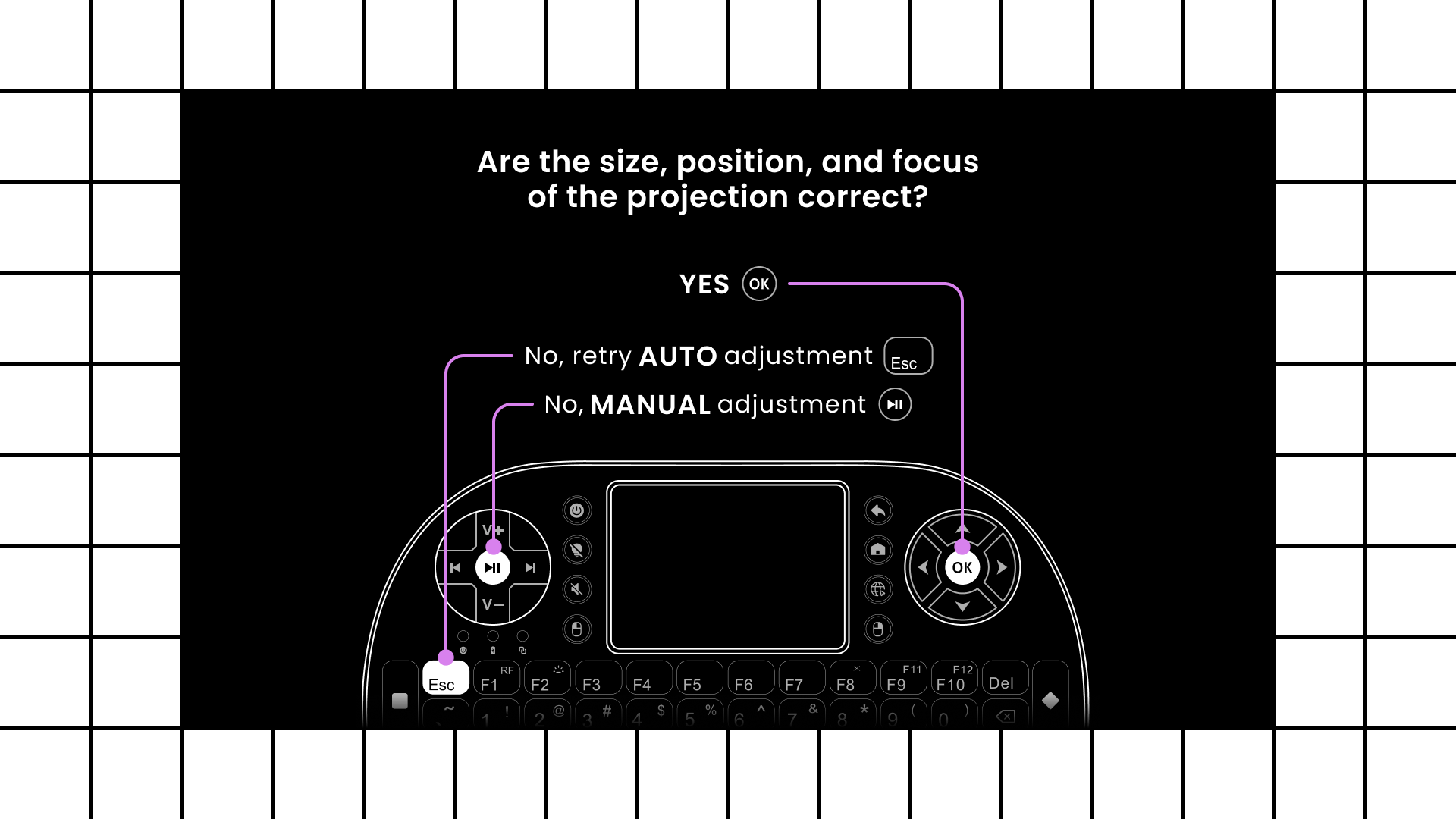

Once the auto-adjustment is complete, the following options will appear on screen :



  • If the size, positioning, and focus of the projection are satisfactory, press OK.

  • Otherwise, you can:

    • Press Esc to retry automatic adjustment.

    • Press Play to proceed with manual adjustment.

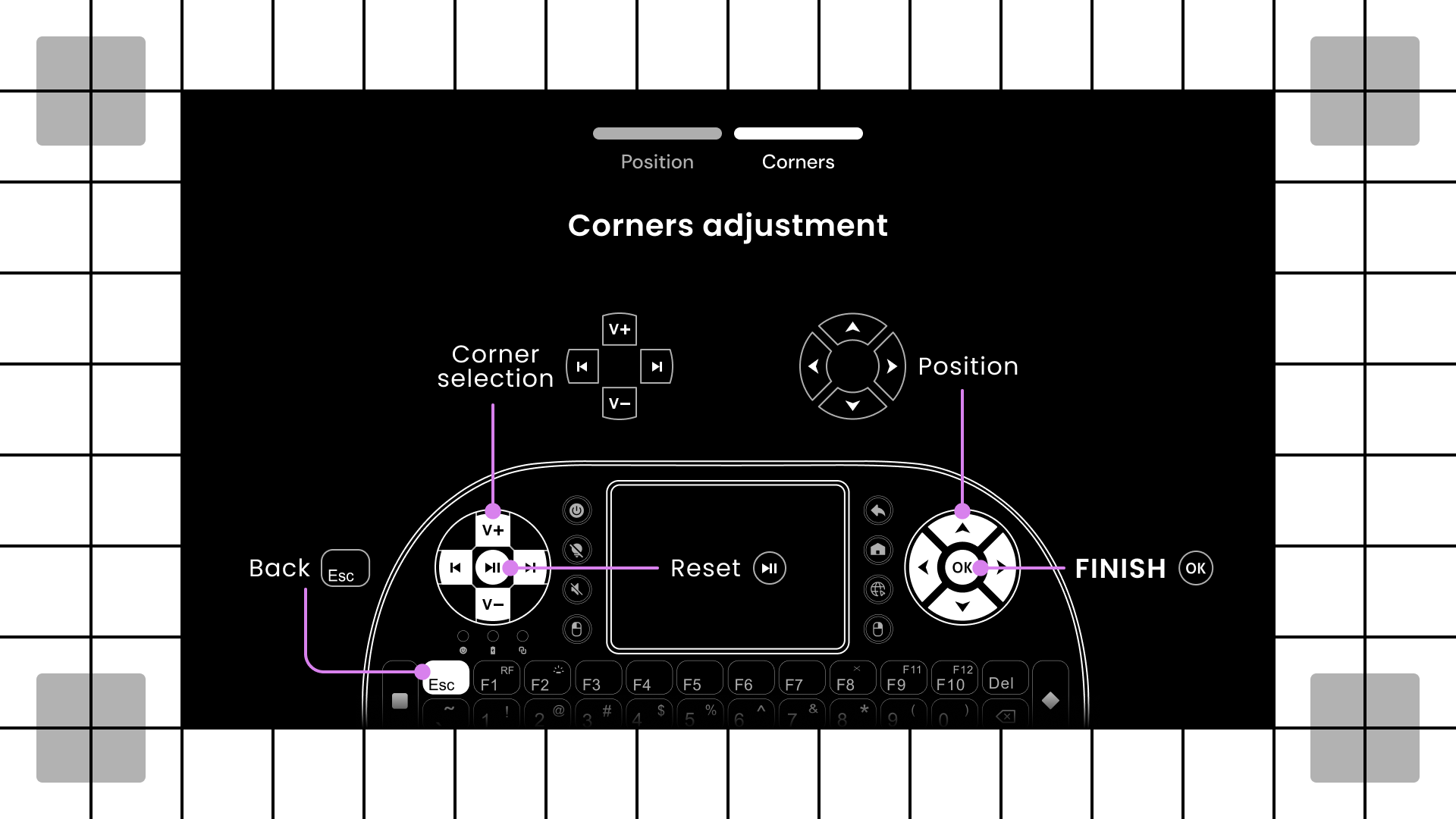

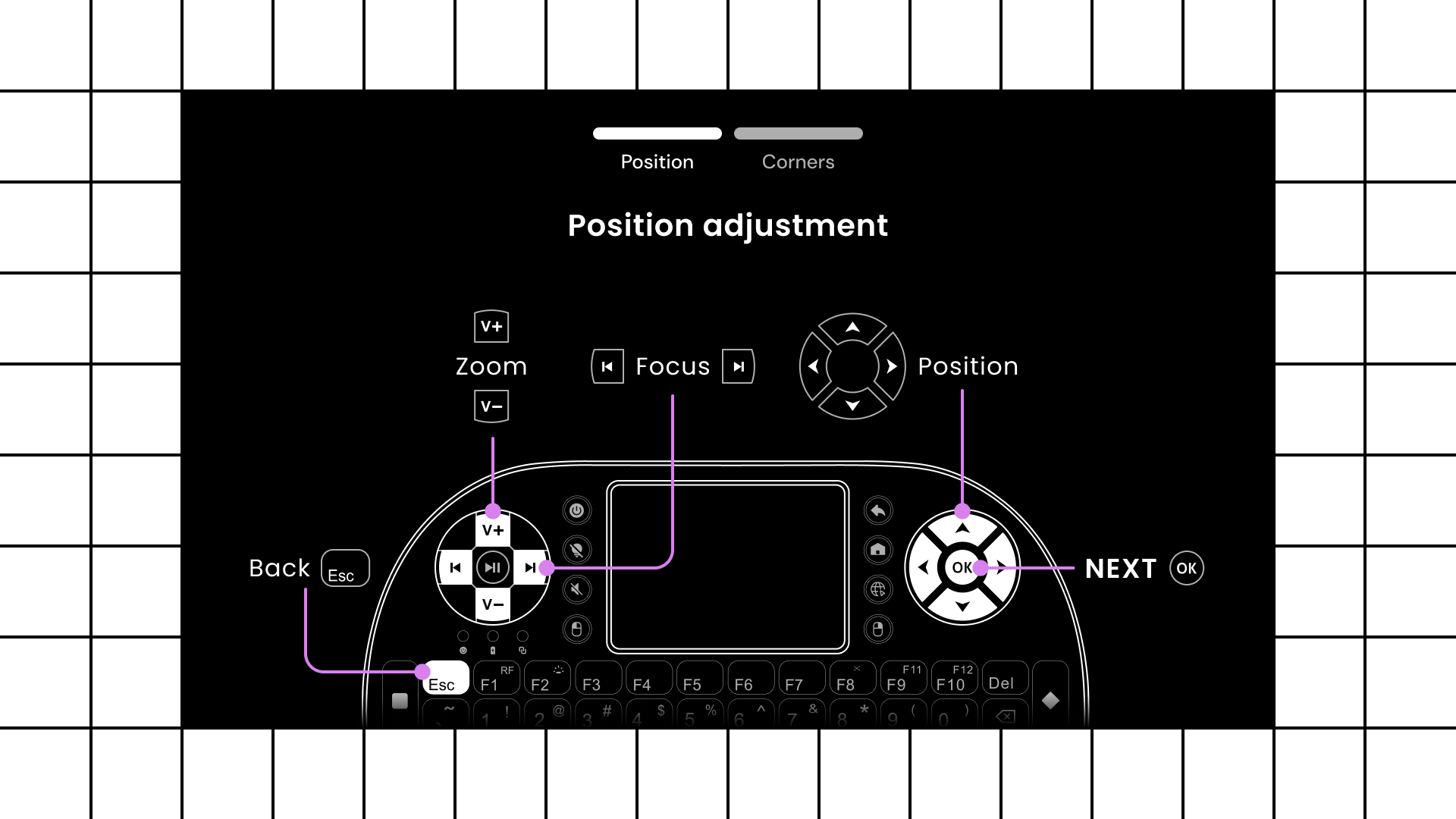

During manual adjustment, use the gamepad functions displayed on the screen to fine-tune the projection to your preference. Once finished, press OK to confirm.






Other alternatives

There are different options available to adjust your projection using the projector remote if you've already left the auto-adjustement page :

  • Four Dots Adjust: Use this setting to correct the shape and size of an image that is not perfectly rectangular.
  • Zoom: Resize the projected image.
  • Focus: Adjust the sharpness of the image using the focus buttons.
  • Shift: If the projector cannot be installed directly in front of the screen, use the lens shift feature to adjust the position of the projected image.

How to use "Four Digit Adjust"

  • Using the projector remote, press the “Menu” button.
  • Select the “Setup” tab.
  • Choose “Keystone”.
  • Use the left and right arrows to select “Four Dots Adjust”.
  • Press “OK” a second time.
  • Select the corner you want to adjust, then use the remote arrows to move it.
  • Once it is positioned correctly, press “OK” to save the adjustment.

How to use "Zoom"

  • Using the projector remote, press the “Zoom” button.
  • Select “Zoom”.
  • Use the left and right arrows to adjust the image as needed.

How to use "Focus"

  • Using the projector remote, press the “Focus” button.
  • Select “Focus”.
  • Use the left and right arrows to adjust the sharpness of the image.

How to use "Shift"

  • Using the projector remote, press the “Shift” button.
  • Select “Shift”.
  • Use the remote arrows to move the image to the desired position.

To learn more about ideal projection setup and to ensure the best experience, refer to Section 9 – Play Area.


Still have questions? Contact us!
