How to open the Heart

If you need need to access the computer, the controller or any component in the Heart, here's how to do it.

The Heart module is installed above the screen for the Lü 2nd generation.

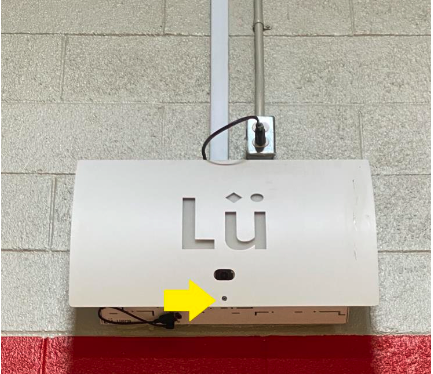

1. Remove the screw identified by the yellow arrow. The cover is fixed with a steel cable so you can let it hang in the air once you removed the screw.

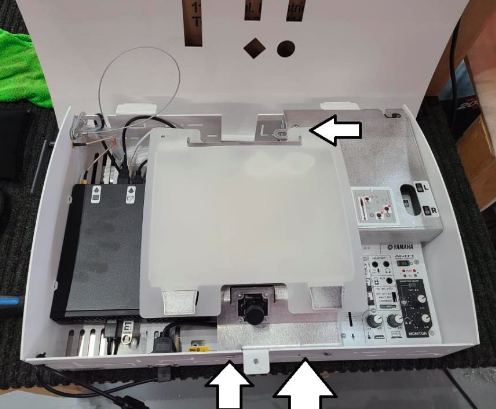

2. Remove the three screws holding the LED panel.
