Correcting Image Shape with Quick Corner

Use the Quick Corner setting to correct the shape of an image that is unevenly rectangular.

Note: For the best image quality, first try to physically align the projector. Use this setting only if physical adjustment is not possible.



Note: If you change the Screen Type or Screen Position setting, your image adjustments are reset.



1. Turn on the projector and display an image.

2. Press the Menu button.

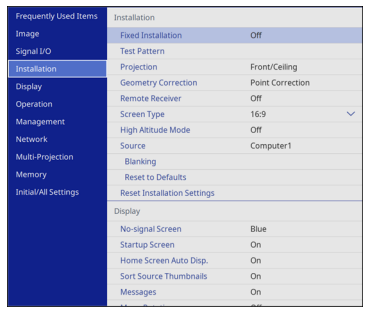

3. Select the Installation menu and press Enter.

4. Select the Geometry Correction setting and press Enter.

5. Select the Quick Corner setting and press Enter.

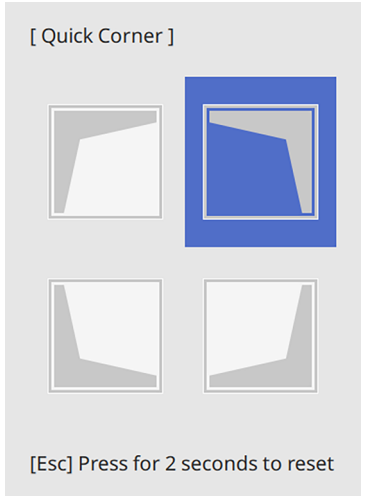

You see the Quick Corner adjustment screen:

6. Use the arrow buttons on the projector or remote control to select the corner of the image you want to adjust. Then press Enter.



Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a reset screen. Then select Yes.



7. Press the arrow buttons to adjust the image shape as necessary. Press Enter to return to the area selection screen.



Note: You can also use the numeric buttons on the remote control to adjust the image shape. If one of the directional arrows on the screen turns gray, you cannot adjust the shape any further in that direction.



8. When you are finished, press Esc.



The Geometry Correction setting is now set to Quick Corner in the projector's Installation menu. If you press the keystone adjustment buttons on the control panel, the area selection screen appears.



Note: To save the current image shape, select Memory > Save Memory. You can save up to three image shapes in the projector's memory.



-----------------------------------------



Note: You cannot combine Quick Corner correction with other image shape correction methods.



1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display the pattern by pressing the down arrow button on the control panel.

2. Press the Menu button.

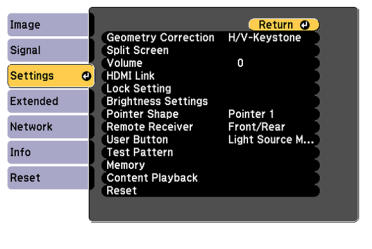

3. Select the Settings menu and press Enter.

4. Select the Geometry Correction setting and press Enter.

5. Select the Quick Corner setting and press Enter. Then press Enter again.

You see the Quick Corner adjustment screen:

Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a reset screen. Then select Yes.



6. Use the arrow buttons on the remote control to select the corner of the image you want to adjust. Then press Enter.

7. Press the arrow buttons to adjust the image shape as necessary.

8. When you are finished, press Esc.
