How to use Reflector Teacher and Reflector 4

Reflector 4 is a wireless screen mirroring software pre-installed on all Gen 2 systems. It lets you share the screen of your phone, tablet, or computer on your projection, and supports multiple devices at once.

More details on Reflector's features via : https://www.airsquirrels.com/reflector

How to use Reflector

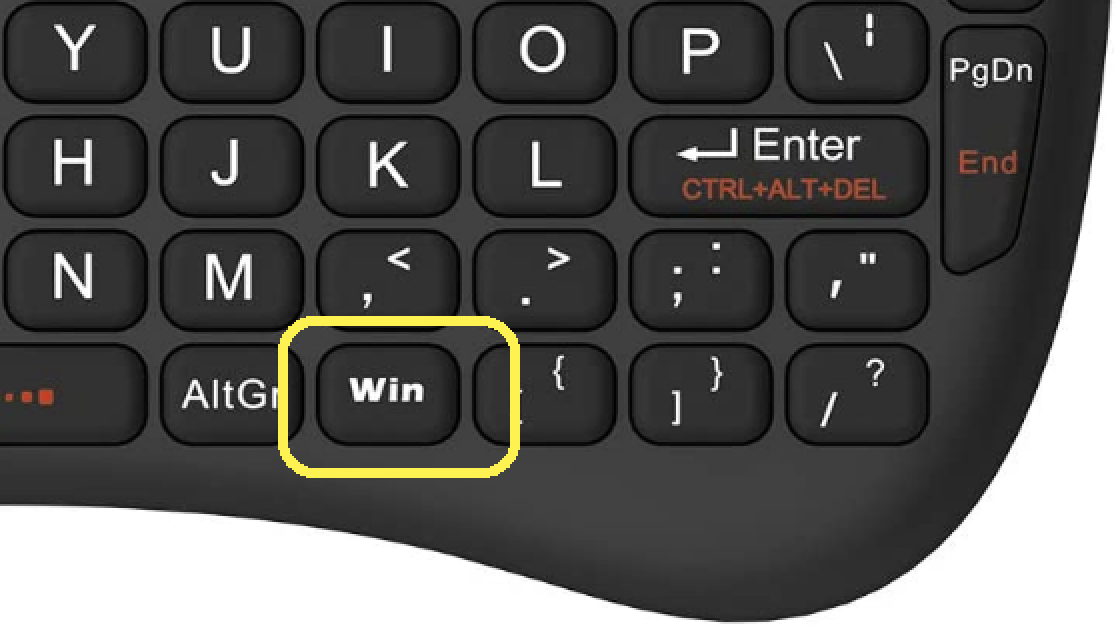

1.  Press the "Win" button on your remote control to open the Windows taskbar.
2. Using the keyboard, type REFLECTOR and open the application.

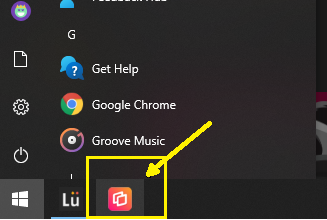

Note: It is also possible that Reflector is already pinned in your taskbar. If so, you can click on the application.

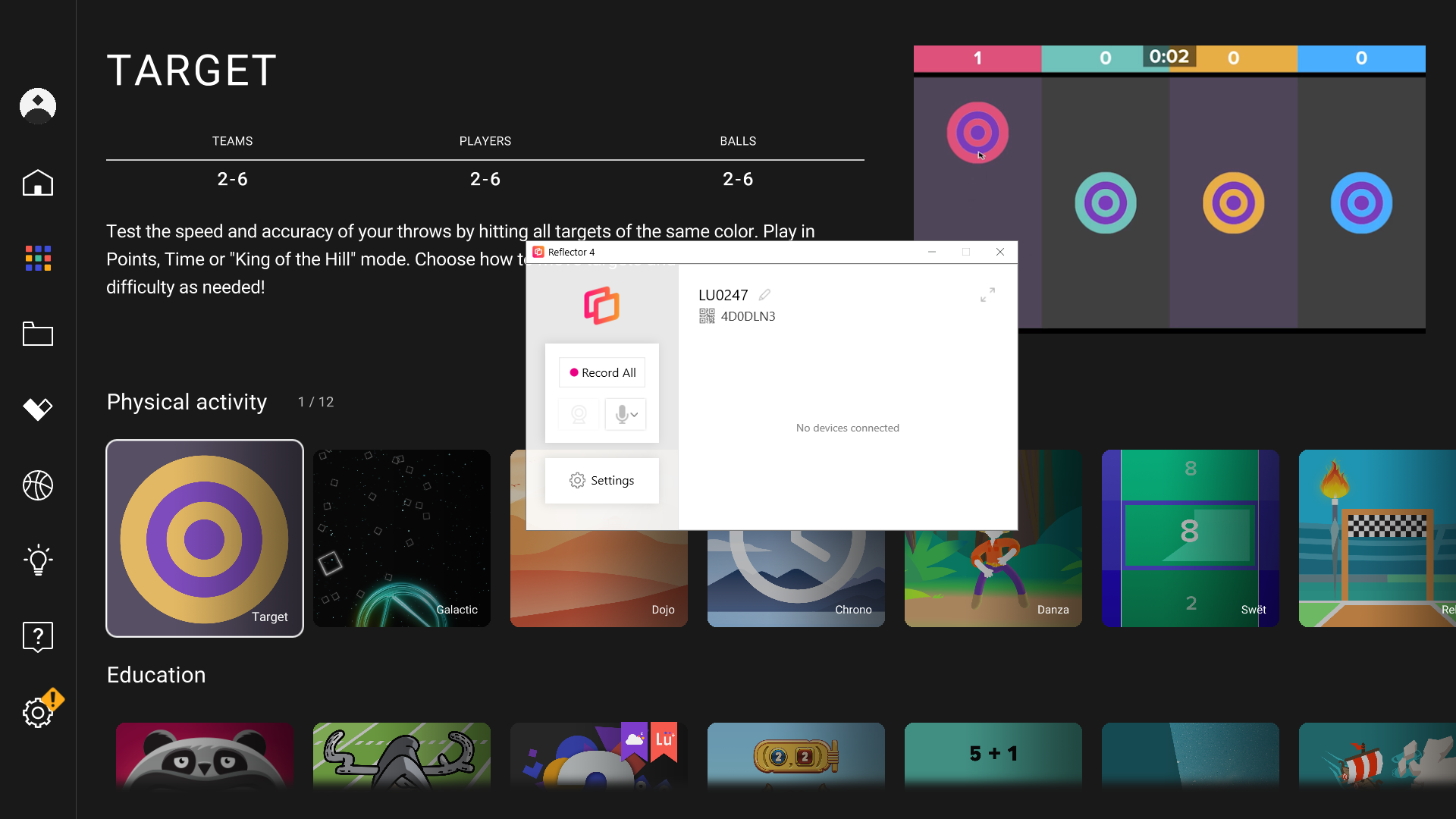

3. Make sure this window is open and that your device is connected on the same network as the Lü computer.

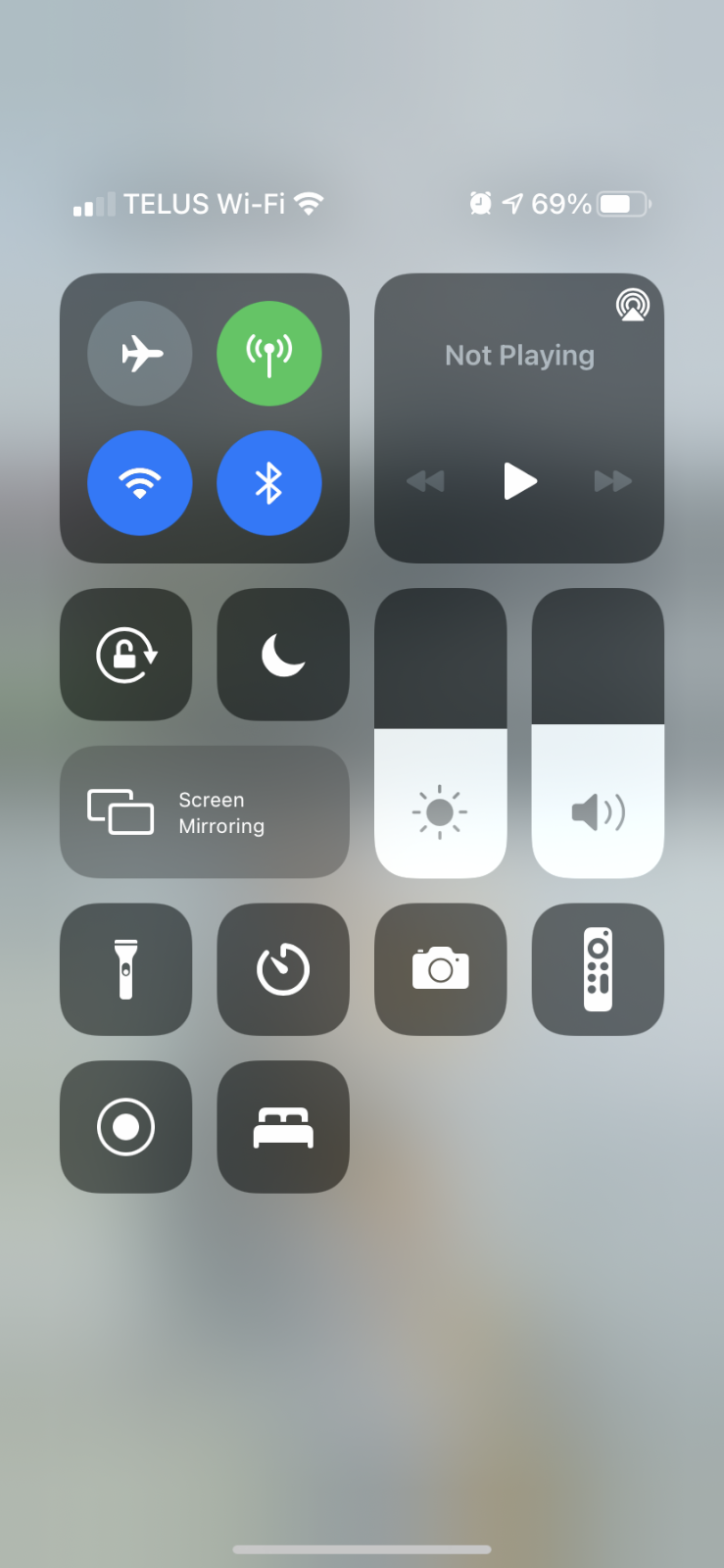

4. Then,  access your screen-sharing settings from your device. This can vary from one device to another.

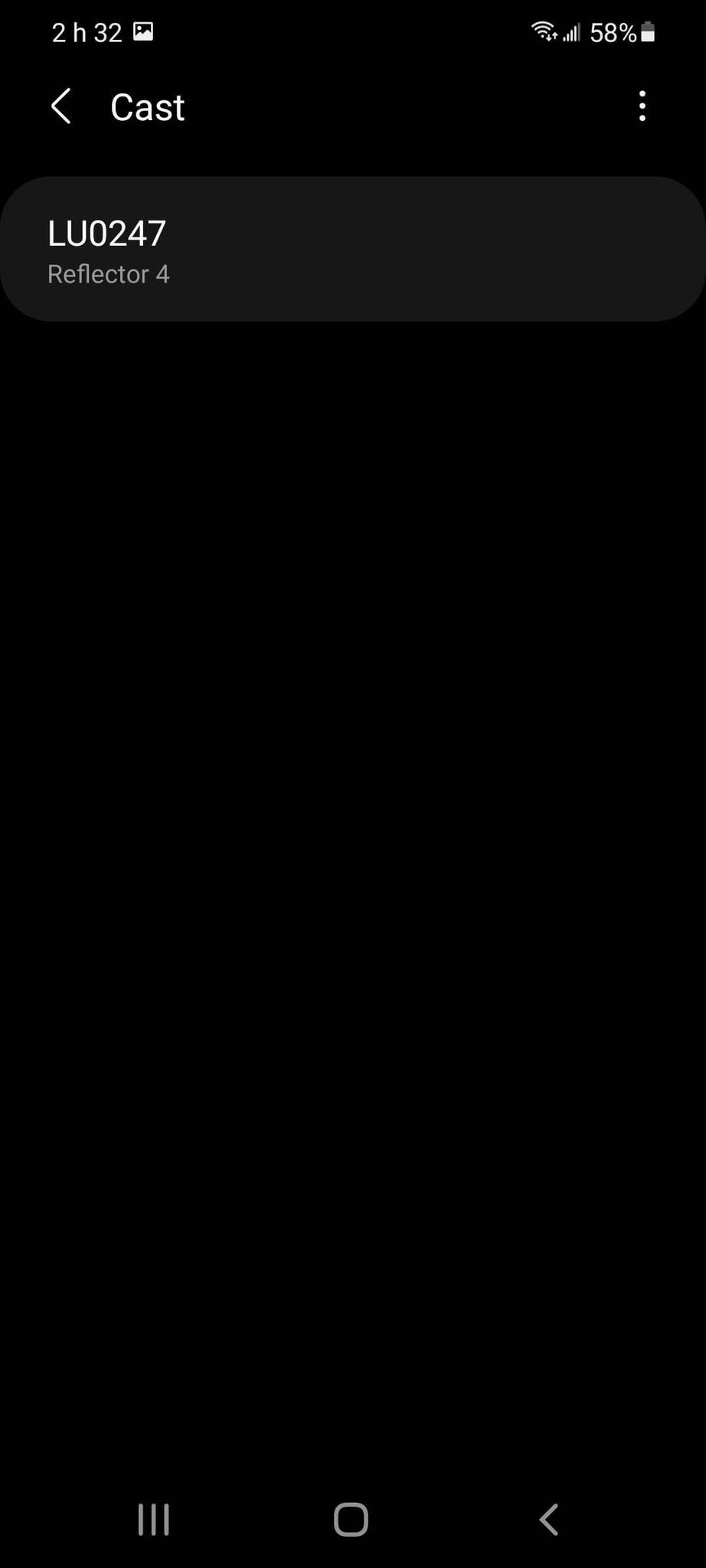

5. Log into your Lü. Eg: Lu0247. If necessary, write down the requested password. This password will be displayed on your Lü screen.


Note: Click on Remember this device so that  Reflector doesn't ask you for a password the next time you cast the same device.
7. Finally, to view your device's screen, click  Allow and show all . Screen sharing should then take place.

You can share several devices at the same time as long as they are all connected to the same internet network as the Lü computer.

Other devices

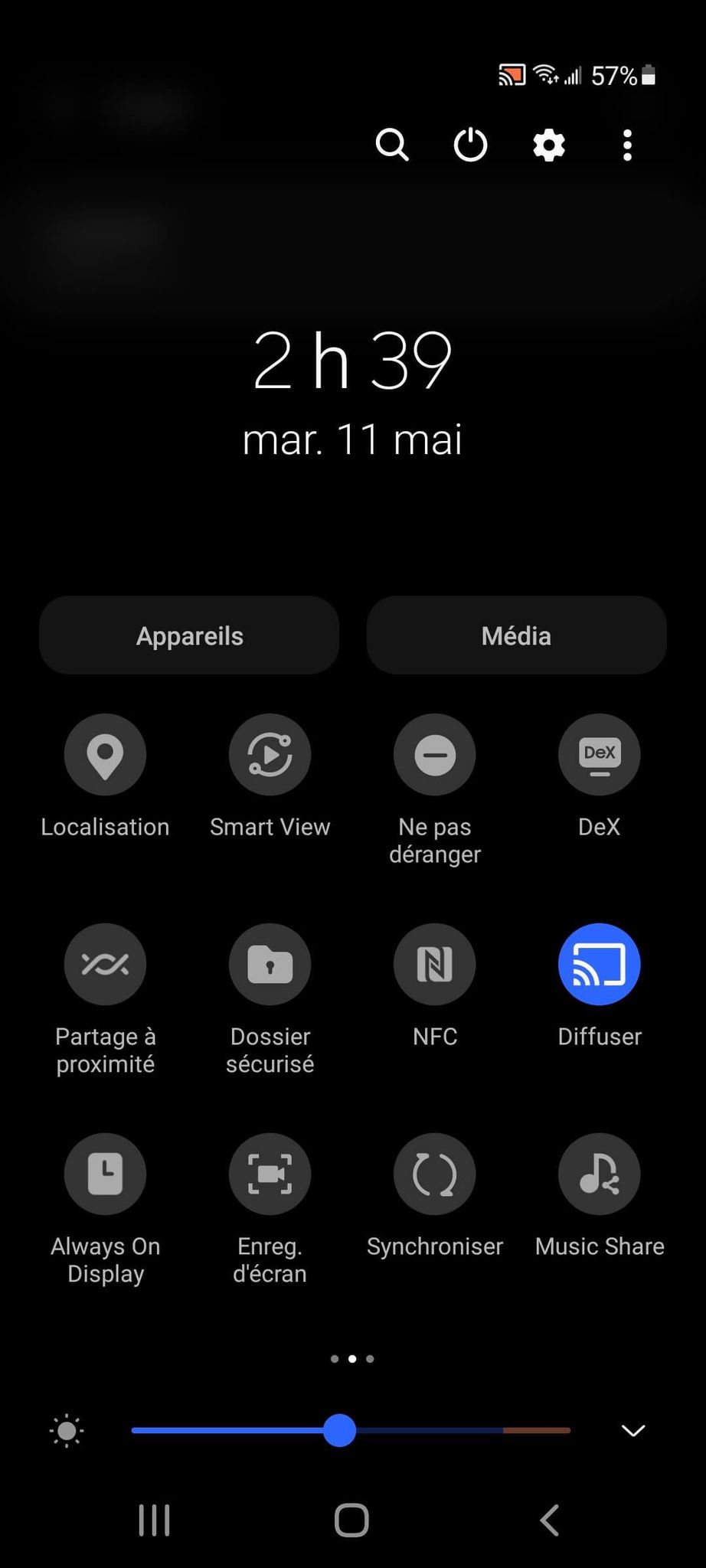

Android devices

If you have an Android phone and your device is on version 11, chances are you will need to download an app on your device. To learn more about this, see the following articles:

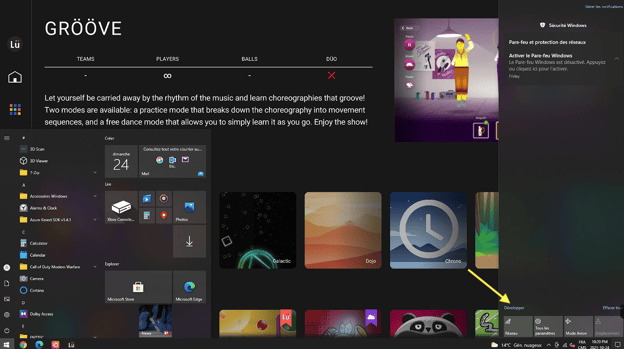

Windows computers

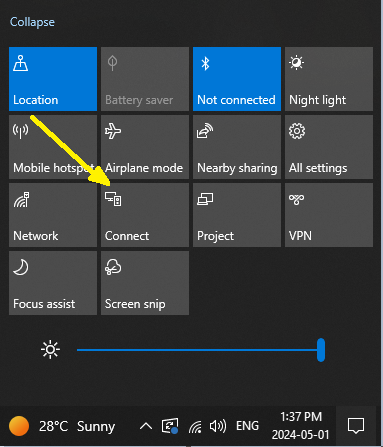

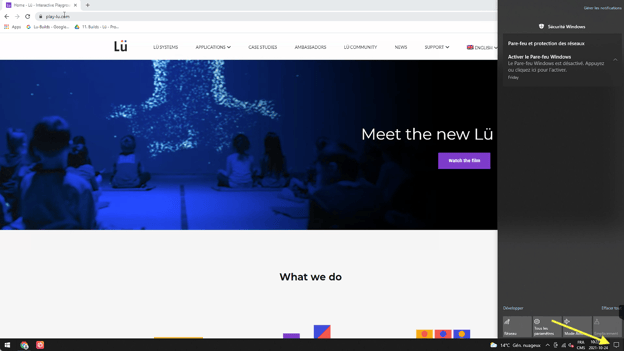

If you're using another PC, here's something that can help.




Screen mirroring does not work

Several reasons can cause this problem, here are some solutions.
  1. Check that your device (phone, tablet, computer, etc.) is on the same internet network as your Lü. Using the keyboard, click on the "Win" button and type WI-FI. Open the WI-FI settings and check if the internet network of your Lü is the same as your device. If not, change your device's internet network.
  1. Your device (cell phone, tablet, computer, etc.) cannot find your Lü even if the two devices are on the same internet network.  First, restart both devices. Second, there may be some protection on the network that prevents Reflector from working. Your IT department should be able to guide you  to resolve this proble.  They must connect the Lü computer to a secure network. Here is some additional information:  https://help.reflectorapp.com/article/224-mirror-to-reflector-via-the-cast-menu-while-on-a-corporate-public-network
If the problem persists, you can also contact the Lü technical support team at 1-855-781-0797, or by email at  support@play-lu.com
Return to the Lü application
When using the Reflector application on your Lü, devices projected with Reflector are by default always displayed in the front of the screen. To be able to navigate between Reflector and your Lü application, here are the steps to follow:
  1.  Press the "Win" button on your remote control.
  2.  Type the word  Reflector  and open the application.
  3.  Click on  Settings  and choose  Preferences .
  4.  Uncheck  Always on top .
  5.  Using your Lü remote, hold down the "Alt" button at the bottom of your remote.
  6.  While still holding the "Alt" button, press the "Tab" button located to the left of your remote control.
  7.  Keep pressing the "Alt" button and use the "Tab" button to navigate between the different windows and return to your Lü application.
